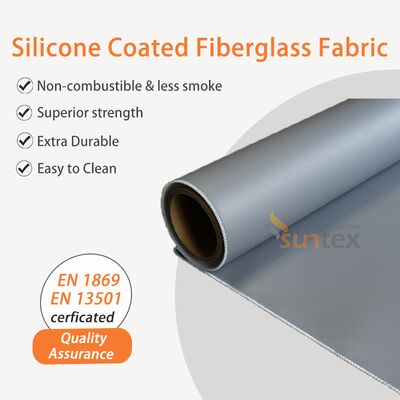

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric

  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
  • Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
Lugar de origem China
Marca SUNTEX
Número do modelo GF200P-SI243-1053
Quantidade de ordem mínima 20 rolos
Detalhes da embalagem Cada rolo em cartão, várias caixas em uma palete
Tempo de entrega 5 a 20 dias
Termos de pagamento T/T; L/C, Paypal…
Habilidade da fonte 500000sqm/month

Contacte-me para amostras e cupons grátis.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Temperature resistance -50 C degree to 500 C degree Weight 400 g/sqm
Thickness 0.3 mm Coating silicone rubber
Width 1 / 1.2 / 1.5 meter Alkali Content Alkali Free
Color Grey Roll length 50 m / 100 m
Destacar

Excellent Insulation Silicone Coated Fiberglass Fabric

,

Fire Retardant Silicone Coated Fiberglass Fabric
Deixe um recado
Descrição de produto

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric



Product Description



Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.



    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.



Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI244-1017
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)



Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 0Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 1Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 2Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 3

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 4

Product Application

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 5

Packaging & Shipping

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 6

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 7



Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 8

Exhibition & Example

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 9

Contact Us

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric 10
