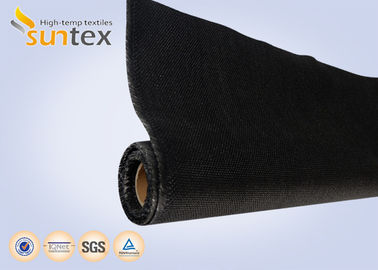

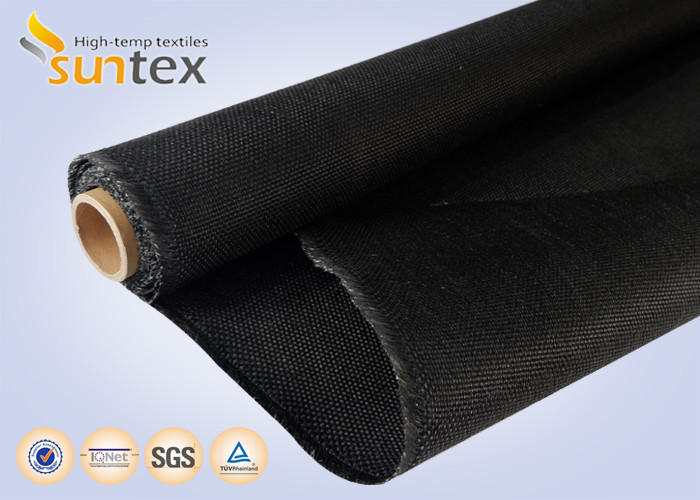

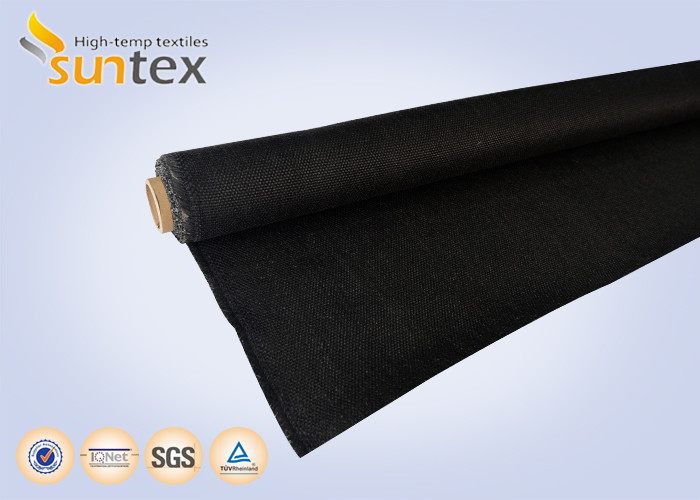

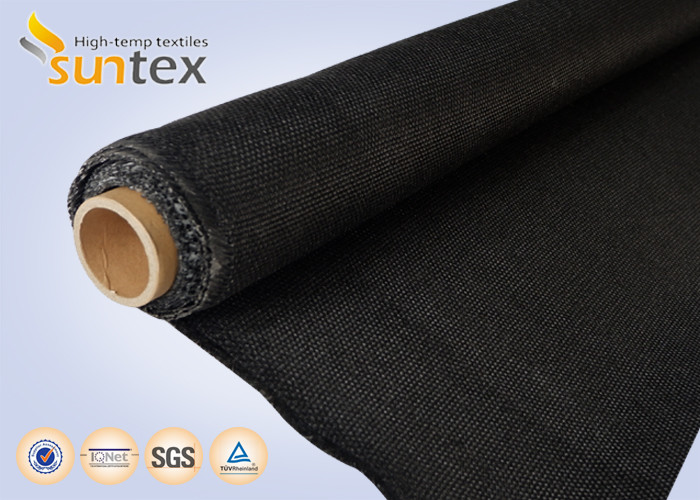

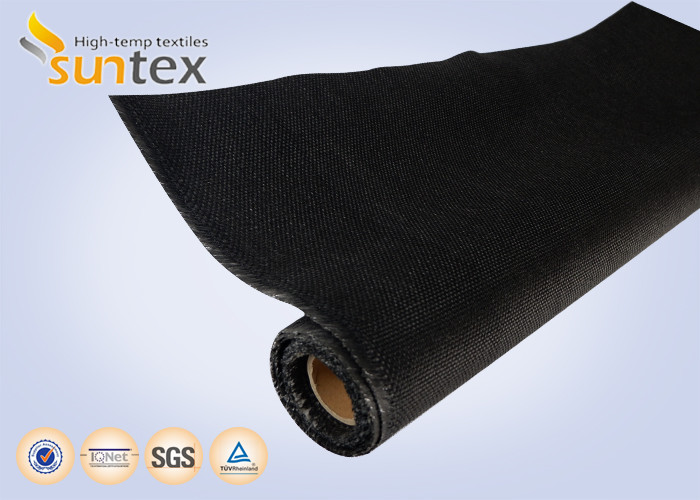

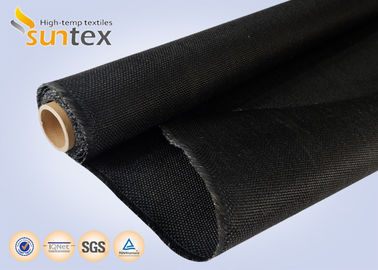

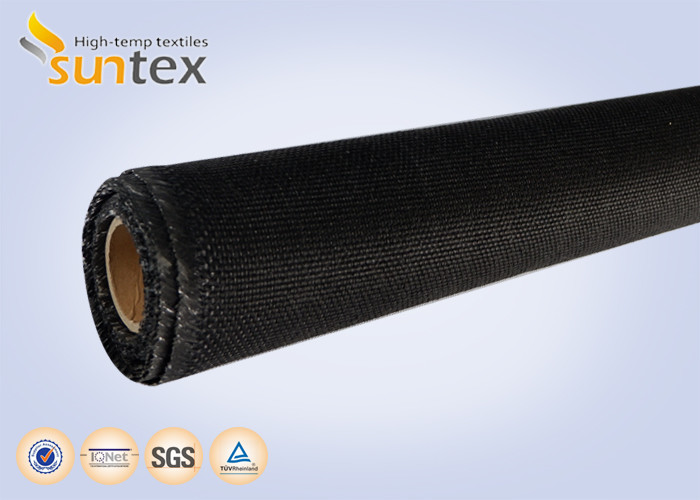

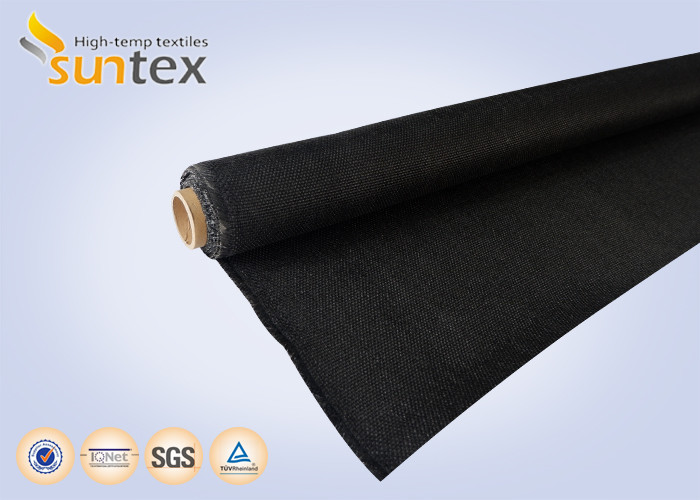

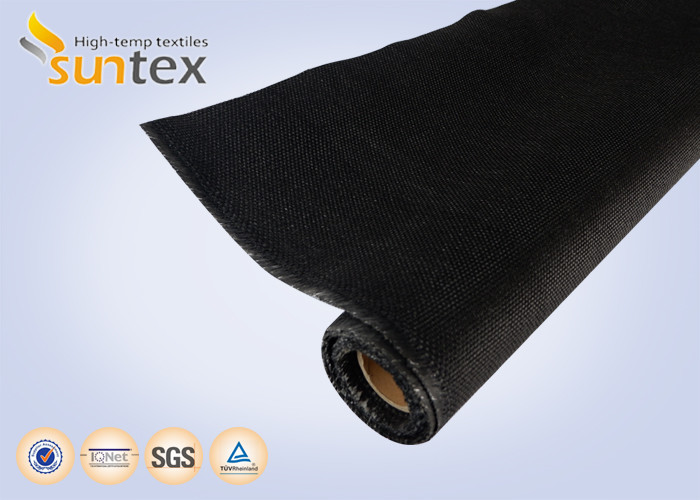

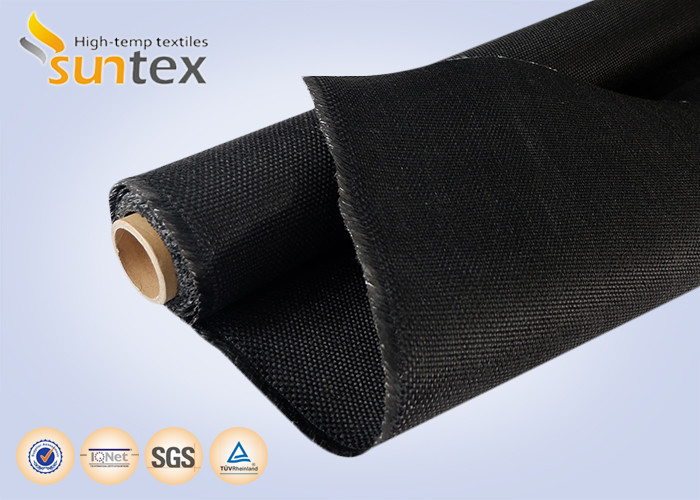

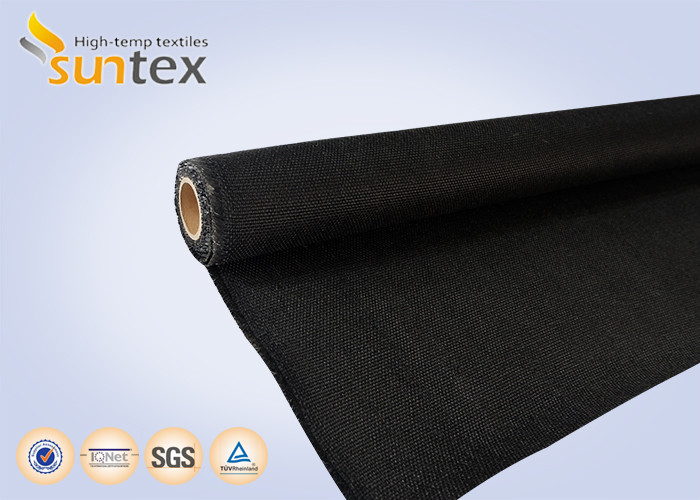

Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant

  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
Lugar de origem China
Marca SUNTEX
Número do modelo GF430P-PU21A-2006
Quantidade de ordem mínima 500 metros
Preço FOB Shanghai 2.3-5.6 $/sqm
Detalhes da embalagem Cada rolo na caixa, várias caixas nos paletes
Tempo de entrega 5-15 dias úteis
Termos de pagamento T/T, L/C, D/P, Western Union
Habilidade da fonte 50000 metro por mês

Contacte-me para amostras e cupons grátis.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Peso 460 g/sqm Grossura 0,41 mm
Cor Azul / preto Tecer fita Terceno de sarja
Largura 1M/1.3M/1,5m/1,52m/1,55m revestimento Poliuretano
Destacar

fireproof PU coated fiberglass fabric

,

high temperature resistant fiberglass fabric

,

460gsm PU coated fiberglass fabric
Deixe um recado
Descrição de produto

Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.

Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.



Main applications

-Fabric air distribution ducts.

-Fabric ductwork connector.

-Fire doors & Fire curtains.

-Welding/fir blankets.

-Other fire and smoke control systems.



BASE FABRIC Base fabric style No. GF430P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. PU21A-2006
Coating Fire retardant, high performance, blue/black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F

Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 0Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 1Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 2Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 3

Style NO. Weight Thickness Color Coating
(g/m2) (oz/yd2) (mm) (inch)
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey Double side
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White Double side
GF660S—PU113-2040 790 23 0.70 0.027 Grey Single side
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey Double side
TGF580—PU113-2019 620 18 0.75 0.0295 Grey Single side
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green Single side

Related Style

Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 4Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 5Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 6Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 7Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 8Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 9Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 10Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 11Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 12Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 13Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 14Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 15

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
